Reaper

V-Control Pro must be set up in the Control/OSC/Web section of the Preferences window. Depending on how many banks are being used, the configuration will vary. At this time functionality is very limited with Reaper.

8 Channel

  • Launch Reaper
  • In the Reaper top menu bar go to: Reaper / Preferences...
  • Navigate to the Control/OSC/Web section of the Preferences window.
  • Click on Add to bring up the Control surface setup window.
  • Select the following in the Control Surface Settings Window:
    • Control Surface Mode: Mackie Control Universal
    • MIDI Input: V-Control
    • MIDI Output: V-Control

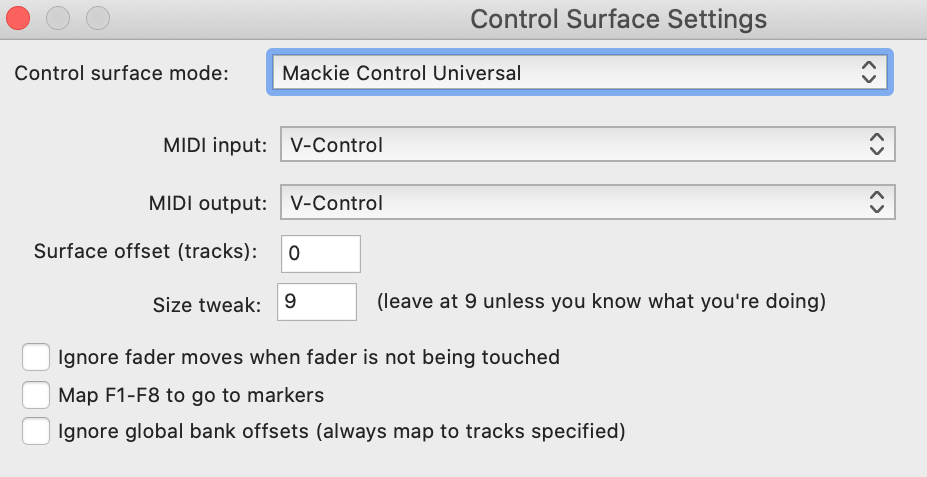

Reaper - 8 Channel

16 Channel

Follow the instructions for 8 Channel setup then do the following:

  • Click on Add again to bring up a new window:
  • Select the following in the Control Surface Settings Window to add the 2nd bank:
    • Control Surface Mode: Mackie Control Extender
    • MIDI Input: V-Control XT2
    • MIDI Output: V-Control XT2
    • Surface Offset (Tracks): 8

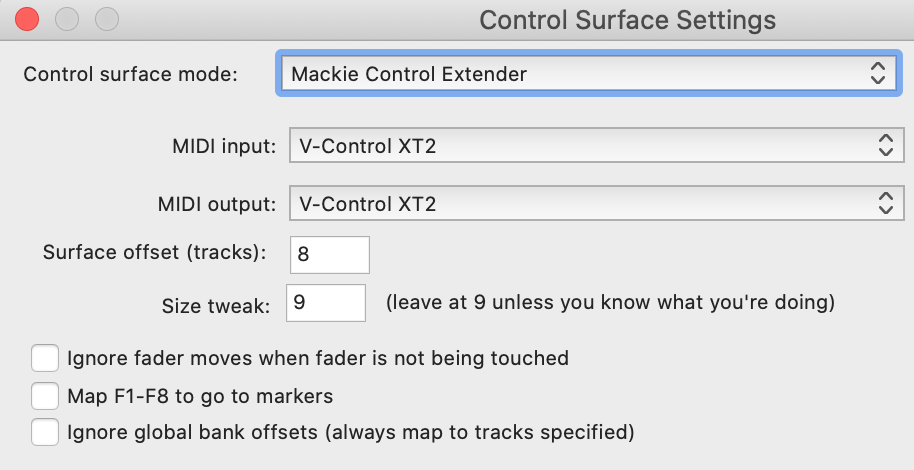

Reaper - 16 Channel

24 Channel

Follow the instructions for 16 Channels then do the following:

  • Click on Add again to bring up a 3rd new window:
  • Select the following in the Control Surface Settings Window to add the 3rd bank:
    • Control Surface Mode: Mackie Control Extender
    • MIDI Input: V-Control XT3
    • MIDI Output: V-Control XT3
    • Surface Offset (Tracks): 16

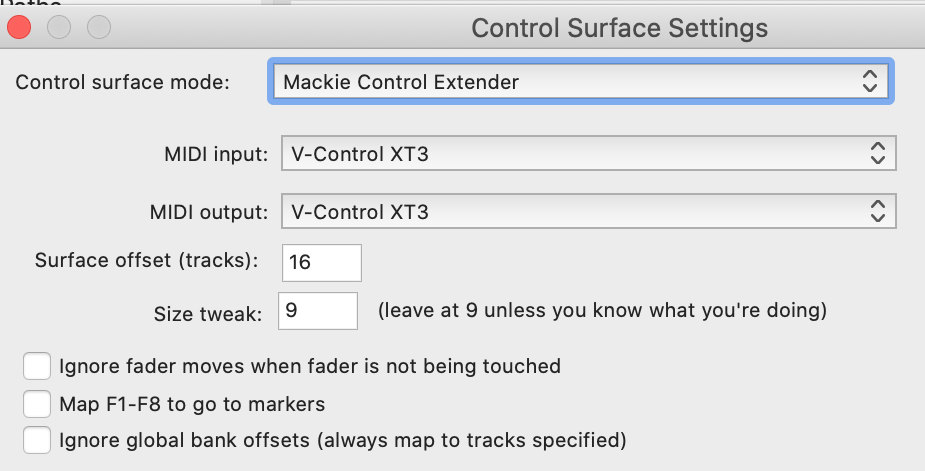

Reaper - 24 Channel
