DaVinci Resolve

DaVinci Resolve connects to V-Control Pro with the HUI protocol. Use DaVinci Resolve 17.4.6 or later.

Control Limitations

DaVinci Resolve provides very limited MIDI remote control. Control is limited to a maximum of eight channel strips. Please contact DaVinci Resolve customer support to request feature enhancements.

Supported Surfaces

Each surface controls channel strips 1-8. See the feature chart for the controls that work with Resolve.

Surface Feature Chart
D-Command (main unit) D-Command - DaVinci Resolve
ProControl (main unit) ProControl - DaVinci Resolve
C|24 C|24 - DaVinci Resolve
Control 24 Control 24 - DaVinci Resolve
Command 8 Command 8 - DaVinci Resolve
Digi 003 Digi 003 - DaVinci Resolve

Setup

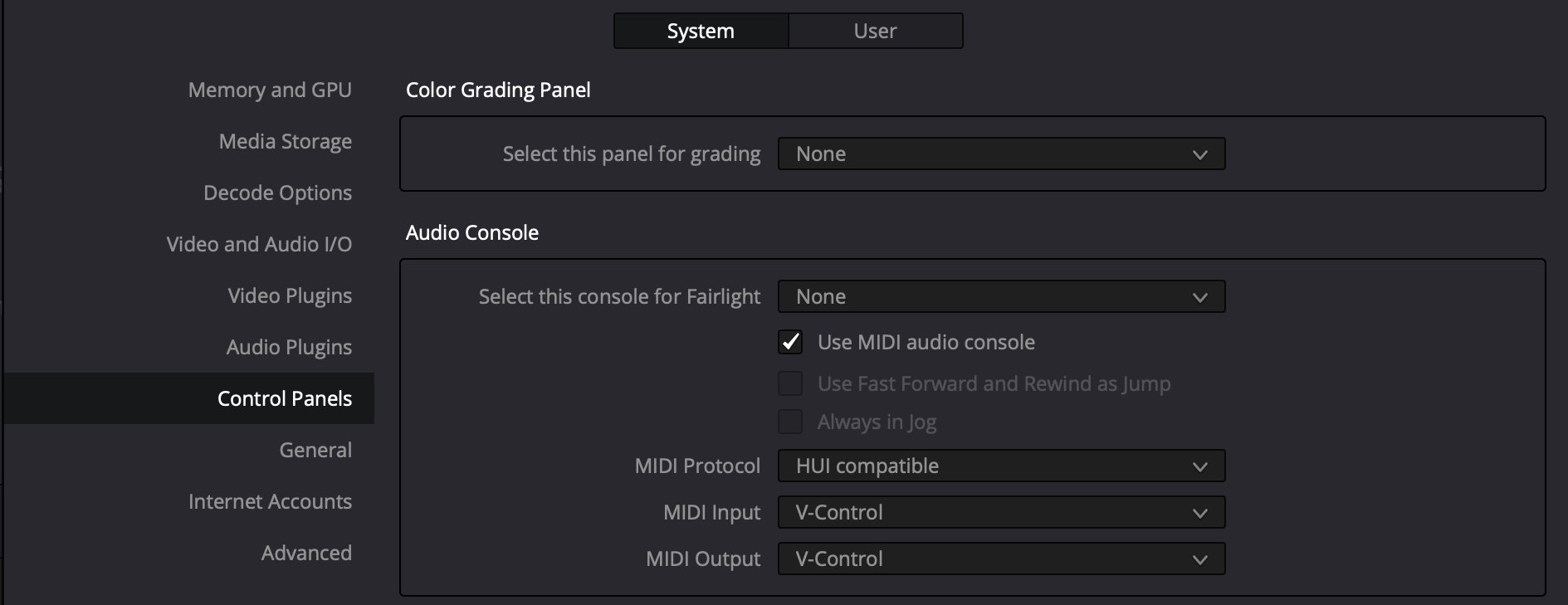

  1. In the Resolve top menu bar select: DaVinci Resolve / Preferences...
  2. In the Preferences window, select "Control Panels".
  3. In the Audio Console section, enable "Use MIDI audio console".
  4. Set up with the following settings:
    • MIDI Protocol: HUI compatible
    • MIDI Input: V-Control
    • MIDI Output: V-Control
